SuperHandy GoRise TX Electric Patient Transfer Lift, 500 lb Capacity, Floor-to-Stand | GUT169
In Stock & Ready to Ship
All orders are shipped within 1 - 2 business days. Products ETA 5-7 business days
In Stock & Ready to Ship
All orders are shipped within 1 - 2 business days. Products ETA 5-7 business days
|
500 LB WEIGHT CAPACITY |
1.2"–28.5" LIFT RANGE |
72 LB PRODUCT WEIGHT |

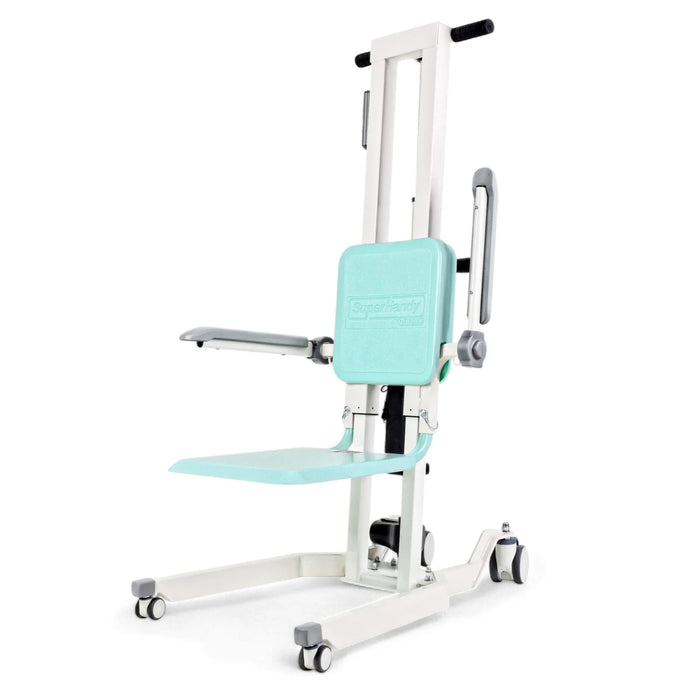

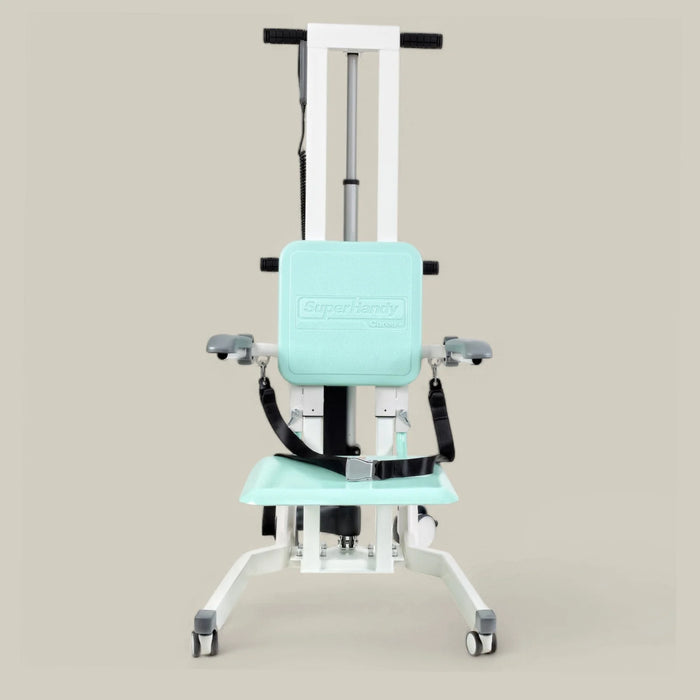

The SuperHandy GoRise TX GUT169 is an electric patient transfer lift designed to assist with lifting and transferring users who need additional mobility support. With a 500 lb capacity, low-access lifting platform, ergonomic support and maneuverable caster design, the GoRise TX helps facilitate transitions from floor level toward standing and transfer to an appropriate chair or mobility device.
Unlike a floor lift designed primarily to raise a user vertically, the GoRise TX GUT169 is designed to support both lifting and transfer tasks. SuperHandy describes it as allowing users to transition from floor level toward standing and then move to another appropriate surface.

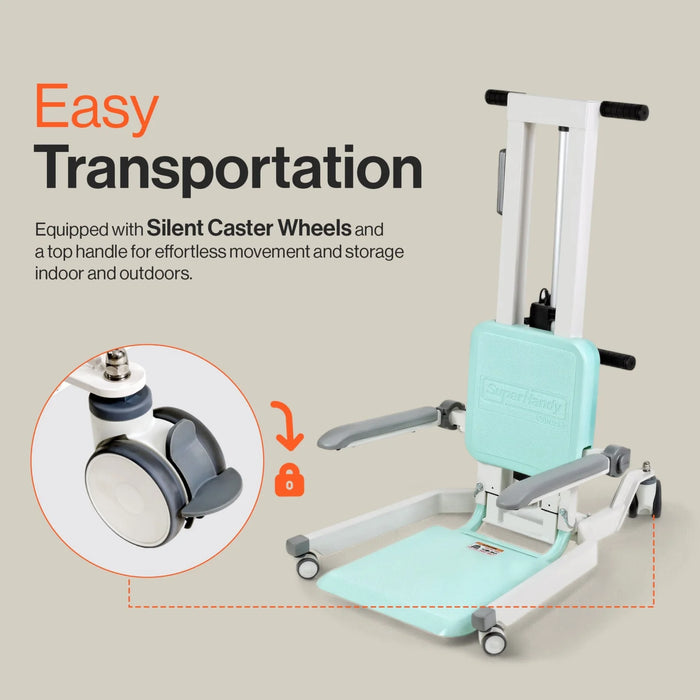

The electric lifting mechanism travels from approximately 1.2 inches to 28.5 inches at a controlled rate of approximately 0.4 inch per second. Its aluminum frame supports up to 500 lb, while solid caster wheels help caregivers position and maneuver the lift.
Home care and appropriate assisted-care environments where users require powered assistance with floor-level recovery, standing assistance and transfers between suitable surfaces.

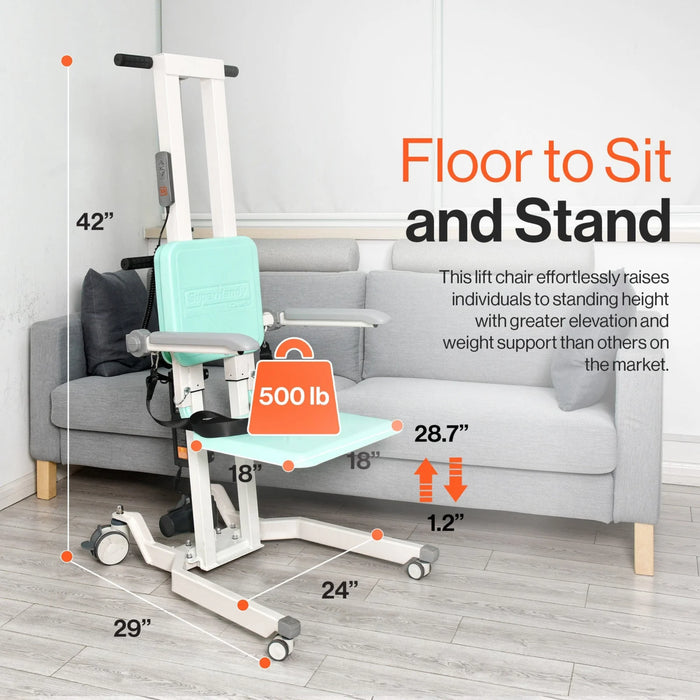

| Specification | GoRise TX GUT169 |
|---|---|
| Weight Capacity | 500 lb |
| Lift Range | 1.2"–28.5" |
| Lift Speed | 0.4 in/sec |
| Product Weight | 72 lb |
| Dimensions | 29" × 24" × 42" |
| Seat Size | 18" × 18" |
| Operation | Electric |
| Frame | Aluminum |
| Rear Wheels | 4" |
| Front Casters | 2" |
| Tire Type | Solid caster |
| Specification | Details |
|---|---|
| Brand | SuperHandy |
| Product Name | GoRise TX |
| Model / SKU | GUT169 / GUT169-FBA |
| Product Type | Electric Patient Transfer / Floor Lift |
| Maximum Weight Capacity | 500 lb |
| Product Weight | 72 lb |
| Dimensions | 29" L × 24" W × 42" H |
| Frame Material | Aluminum |
| Handle Material | Rubber |
| Specification | Details |
|---|---|
| Minimum Lift Height | 1.2" |
| Maximum Lift Height | 28.5" |
| Lift Speed | 0.4 in/sec |
| Seat Size | 18" × 18" |
| Actuator Voltage | 24V DC |
| Actuator Maximum Load | 3000 N |
| Duty Cycle | Max. 10%, 2 min on / 18 min off |
| Specification | Details |
|---|---|
| Battery Capacity | 2000 mAh |
| Maximum Output Voltage | 25.9V DC |
| Maximum Output Current | 5A |
| Battery Input | 24–30V DC |
| Charger Input | 100–240V AC, 50/60 Hz |
| Charger Output | 29V DC, 2A |
| Specification | Details |
|---|---|
| Front Wheels | 2" × 2 |
| Rear Wheels | 4" × 2 |
| Tire Type | Solid caster |
| Frame | Aluminum |
| Operation | Electric |

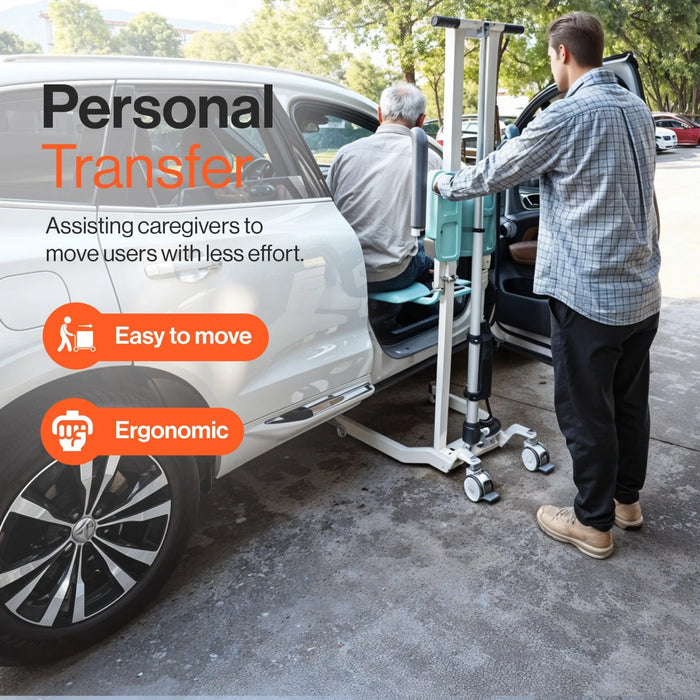

Lift + Transfer Function: GUT169 is designed not just to lift but also to facilitate transfers to another appropriate seated surface.
500 lb Capacity: Provides heavy-duty lifting capability while using an aluminum frame.
Low Floor Access: The approximately 1.2-inch minimum height allows the seat platform to position close to floor level.
Controlled Electric Lifting: Powered operation at approximately 0.4 inch per second reduces manual lifting demands on caregivers.
The GoRise TX should be used according to the manufacturer's instructions and must not be operated above its 500 lb maximum capacity. Ensure the user is correctly positioned and secured before lifting or transferring. Appropriate caregiver assistance should be provided based on the user's mobility and transfer needs.
The SuperHandy GoRise TX GUT169 is backed by a 1-year limited manufacturer warranty covering defects in materials and workmanship under normal use. Warranty terms, limitations and proof-of-purchase requirements apply.
